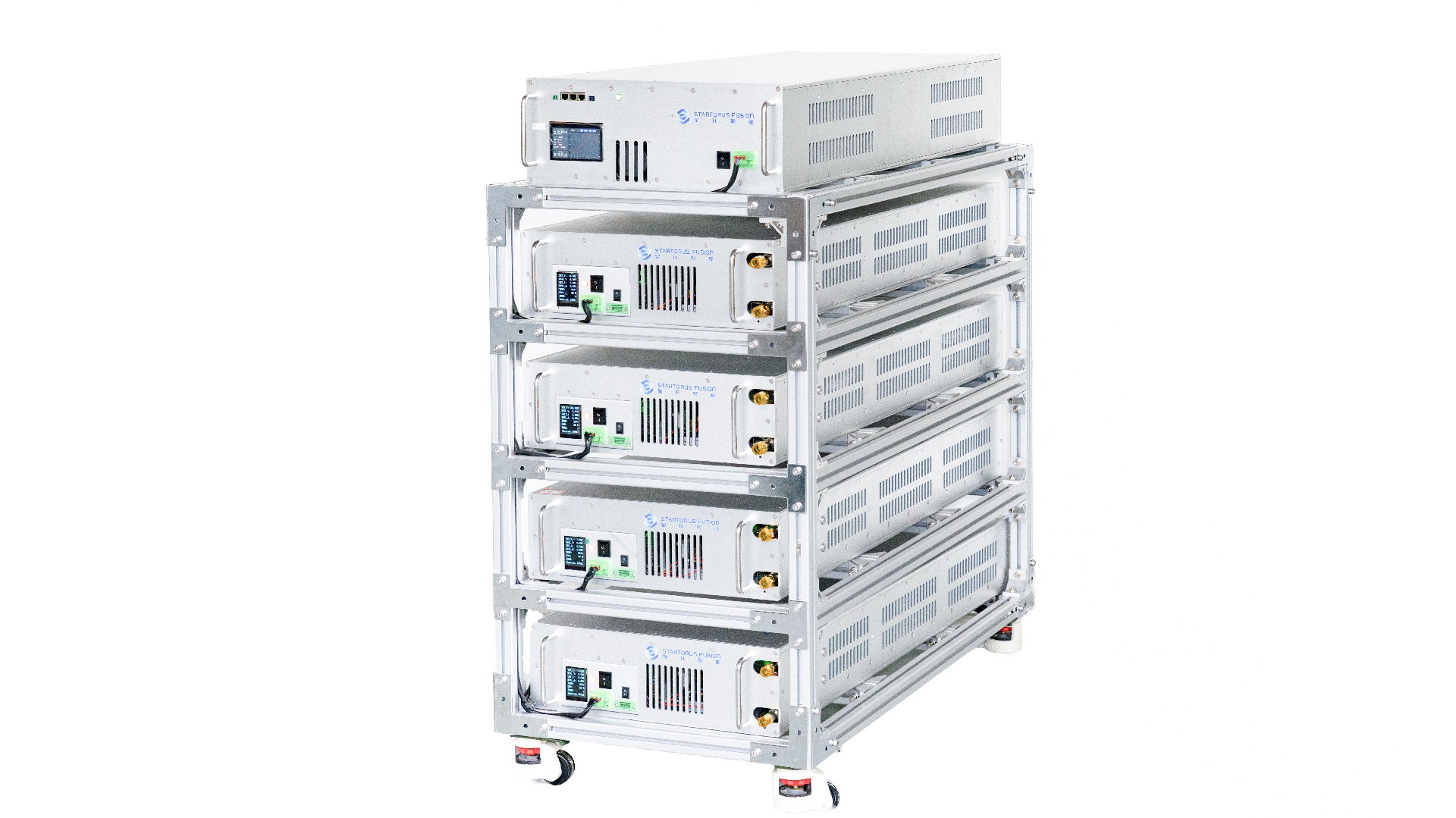

The Supercapacitor Integrated Unit is engineered as a high-performance core component for advanced magnet power supply systems, seamlessly integrating energy storage, rapid charging, and controlled discharging functions into a single compact platform. It delivers exceptional power density, extended operational lifespan, and proven reliability under demanding conditions. The unit features an integrated architecture that combines supercapacitor modules, dedicated charging power supplies, precision discharging components, and a comprehensive monitoring system. Equipped with a built-in display and RS485 communication interface, it offers distinct advantages such as high integration, elimination of external management devices, true plug-and-play operation, and simplified maintenance. Ideal for a wide range of high-power applications, this product is particularly suited for use in new energy systems, grid-scale power storage, pulsed power systems, and related advanced technical fields.

This advanced pulsed power supply serves as a core driver for PF and CS magnets in tokamak fusion devices. Designed with a fully modular architecture, it integrates three key subsystems: a high-density Energy Storage Unit, a high-efficiency Power Conversion Unit, and an intelligent Digital Control Unit. - Through adjustable power switch topologies and hybrid energy storage—combining aluminum electrolytic capacitors with supercapacitor modules—the system can be rapidly reconfigured between PF pulse magnet drive power supplies and CS pulse magnet drive power supplies, offering exceptional operational adaptability. - Delivers output currents up to ±10 kA (PF) and ±20 kA (CS), with a current rise rate of 1 kA/ms. The current fall rate is configurable via external series resistors, extending up to 2 kA/ms for CS operation. - Supports both voltage-controlled and current-controlled discharge regimes. Operators can select either mode prior to operation or switch between them in real time during discharge for unmatched waveform flexibility. - Equipped with multi-protocol communication interfaces (RS485, Ethernet, EtherCAT), the system enables seamless remote monitoring, control, and automation via integrated power supply control software. - Its modular construction allows for tailored adjustments to output voltage, current, pulse waveform, and timing parameters, ensuring optimal performance for specific experimental or operational requirements.

This product utilizes a supercapacitor module for energy storage, integrating a power conversion unit, a storage unit, and a controller. It boasts significant advantages such as compact size and high power density. The product supports both offline LCD screen control and online remote control modes. Online communication is compatible with multiple industrial communication protocols, including RS485, Ethernet, and EtherCAT. Additionally, the product can serve as a basic unit for flexible series and parallel expansion. The output voltage can reach up to ±3kV, with no restrictions on the output current. With its modular architecture, the system can be easily expanded based on actual application requirements, ensuring efficient operation and maintenance.
