The High-Bandwidth Isolation Amplifier is an analog signal isolation device developed by Startorus Fusion Energy for high-speed signal isolation in fusion experiment and similar scenarios. The isolation amplifier features a bandwidth of DC to 50 MHz, with the single-channel model supporting ±5V input and 3000 VDC isolation voltage, while the 8-channel model supports ±2.5V input and 1500 VDC isolation voltage. The input impedance design minimizes errors introduced by the signal source internal resistance, and noise suppression measures are designed internally to reduce system noise. The product line offers both single-channel and 8-channel configurations, designed as a compact and portable aluminum alloy enclosure for easy operation.
| Parameter | Single-Channel | 8-Channel |
| Number of Channels | 1 | 8 |
| Bandwidth | DC～50 MHz(-3dB) | |
| Gain | 1 | |
| Accuracy | 0.5 % | |
| Input Voltage Range | ± 5 V | ± 2.5 V |
| Output Voltage Range | ± 5 V | ± 2.5 V |
| Input Impedance | 50 Ω | 1 Ω |
| Isolation Voltage | 3000 VDC | 1500 VDC |
The High-Bandwidth Isolation Amplifier is widely applicable to industrial measurement and control systems in power, electronics, petrochemicals, steel, and other industries, providing electrical isolation for equipment protection and ensuring system stability and reliability.

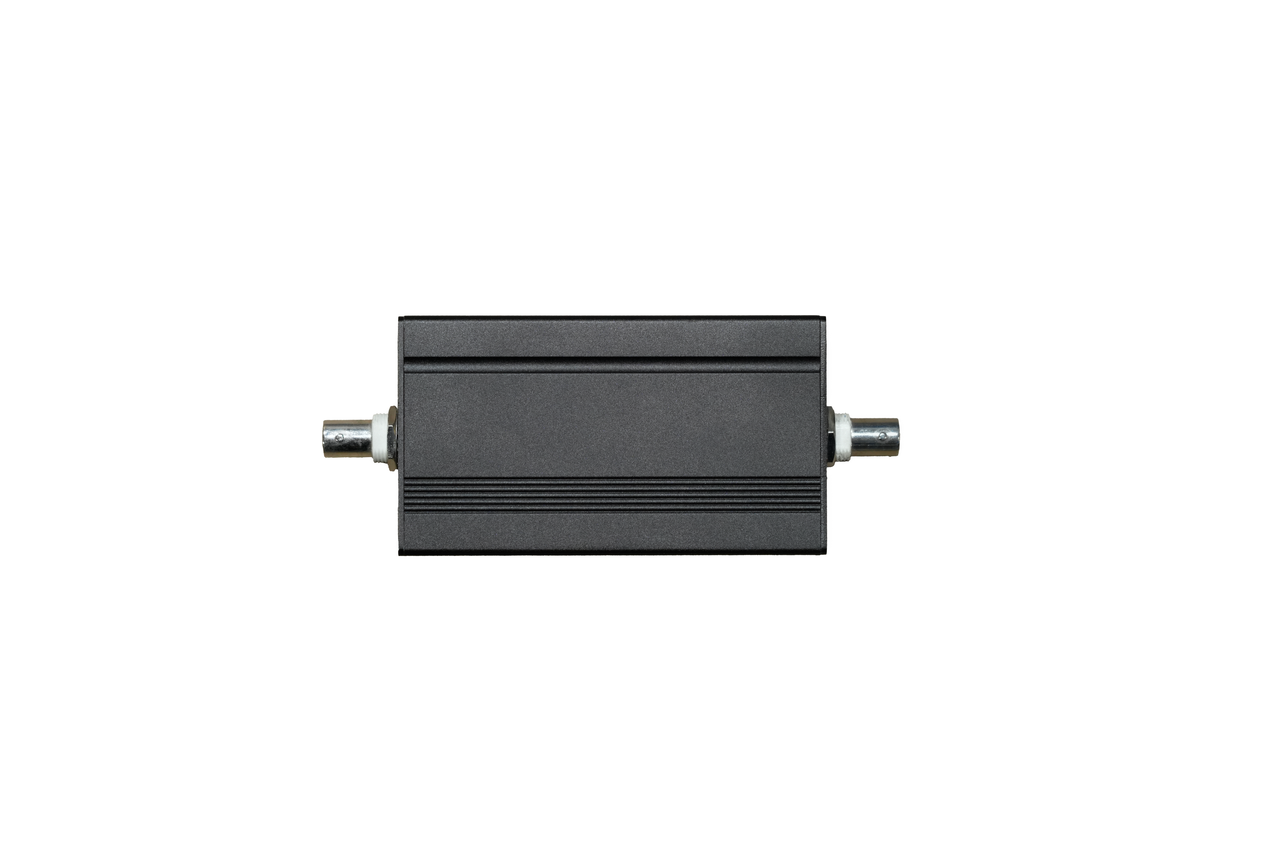

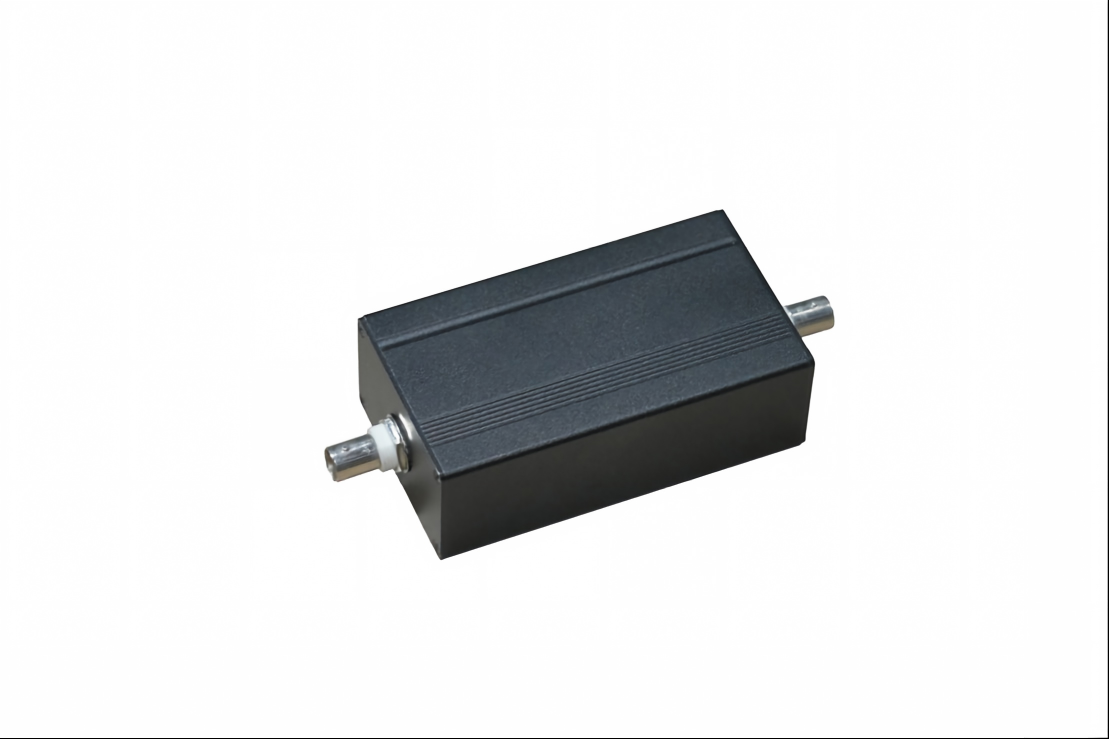

The product line offers both single-channel and 8-channel configurations, which can be flexibly selected based on system requirements to meet diverse application scenario isolation needs.
