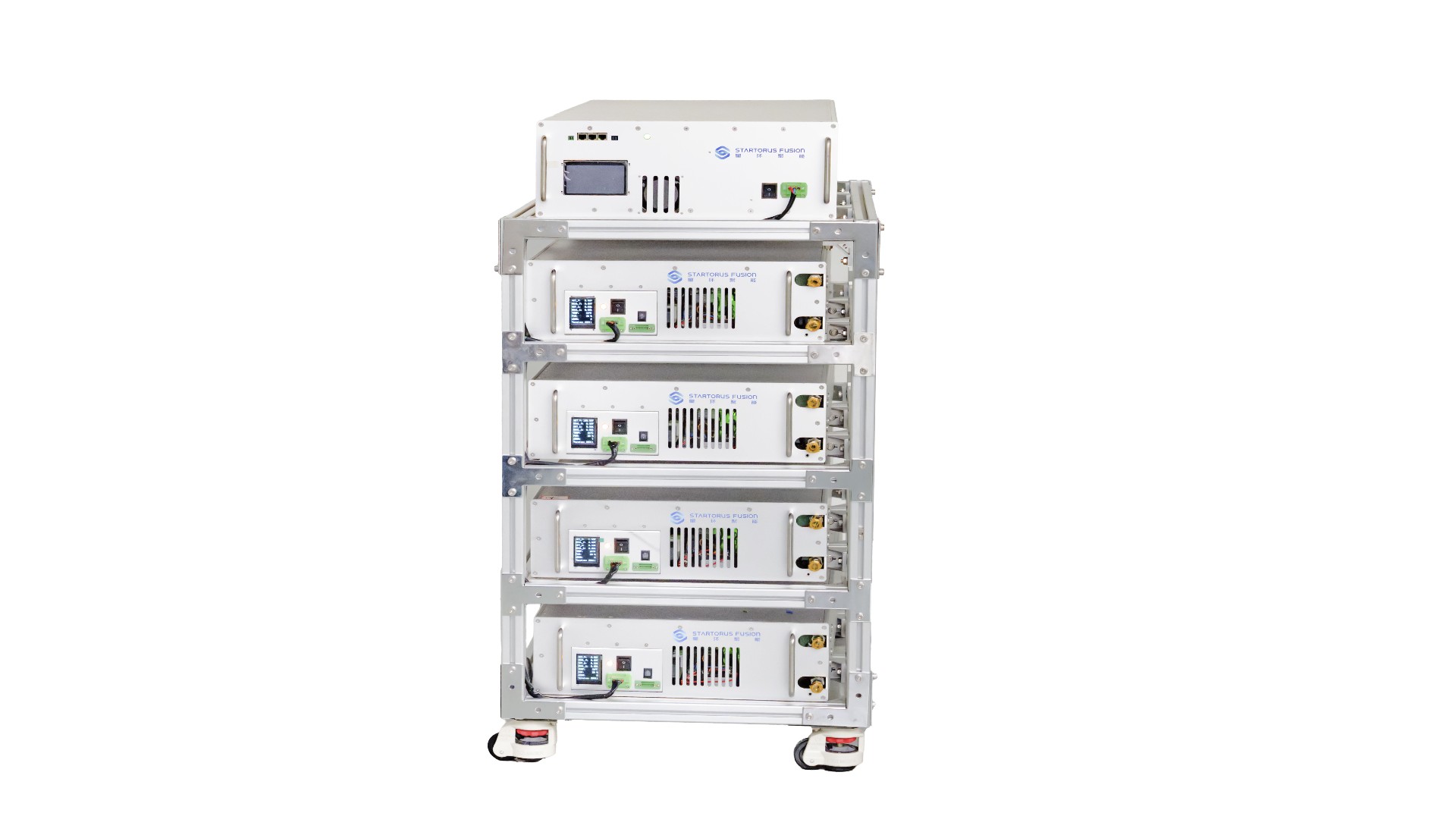

This product utilizes a supercapacitor module for energy storage, integrating a power conversion unit, a storage unit, and a controller. It boasts significant advantages such as compact size and high power density. The product supports both offline LCD screen control and online remote control modes. Online communication is compatible with multiple industrial communication protocols, including RS485, Ethernet, and EtherCAT. Additionally, the product can serve as a basic unit for flexible series and parallel expansion. The output voltage can reach up to ±3kV, with no restrictions on the output current. With its modular architecture, the system can be easily expanded based on actual application requirements, ensuring efficient operation and maintenance.
General Pulsed Power Supply Module Technical Specifications：
Project | Specification description | |
|---|---|---|
Input | Input voltage | 220VAC±15% |
Power | 5kW max | |
PF | ≥0.98 | |
Energy storage | 900Wh（about 3.24MJ） | |
Output | Output voltage | -500V~500V |
Voltage accuracy | 5%FS | |
Output current | -2000A~2000A | |
Current accuracy | 1%FS | |
Output combination mode | Capable of independent output and arbitrary series-parallel combination | |
Output pulse duration | 1s | |
Control | Adjust the control cycle | 200us |
Communication interface | RS485、EtherCAT、Ethernet | |
Working mode | Voltage control/current control is optional, and it supports four-quadrant operation | |
Safety regulations | Insulation withstand voltage | ≥3000VDC |
Structure | Size | 1240 mm × 650 mm × 1250 mm |
Environmental conditions | Working temperature | 0~35℃ |
Humidity | ≤95%，No condensation | |
Altitude | 0~2000m | |
Cooling method | Air cooling + water cooling | |
Storage Unit Technical Specifications：
Project | Specification description | |
|---|---|---|
Energy storage module | Form | Supercapacitor module |
Function | Voltage monitoring | |
Temperature monitoring | ||
Voltage equalization | ||
RS485 communication | ||
Insulation withstand voltage | 3000VDC | |
Charging | Current | 6A max |
Power | 1.2kW max | |
Discharge | Discharge method | Water-cooled resistor |
Structure | Size | 1180 mm × 500 mm × 157 mm |
This power supply product is primarily targeted at cutting-edge fields such as controlled nuclear fusion energy, high-end electrical testing, industrial pulse power, and large scientific facilities. With its modular design, high power density, high voltage output (±3kV), and capability to interface with multiple industrial communication protocols, it provides efficient, flexible, and reliable power solutions for applications including magnet (PF/TF/CS) drives in fusion devices, electrical equipment characteristic testing, and pulse power applications
