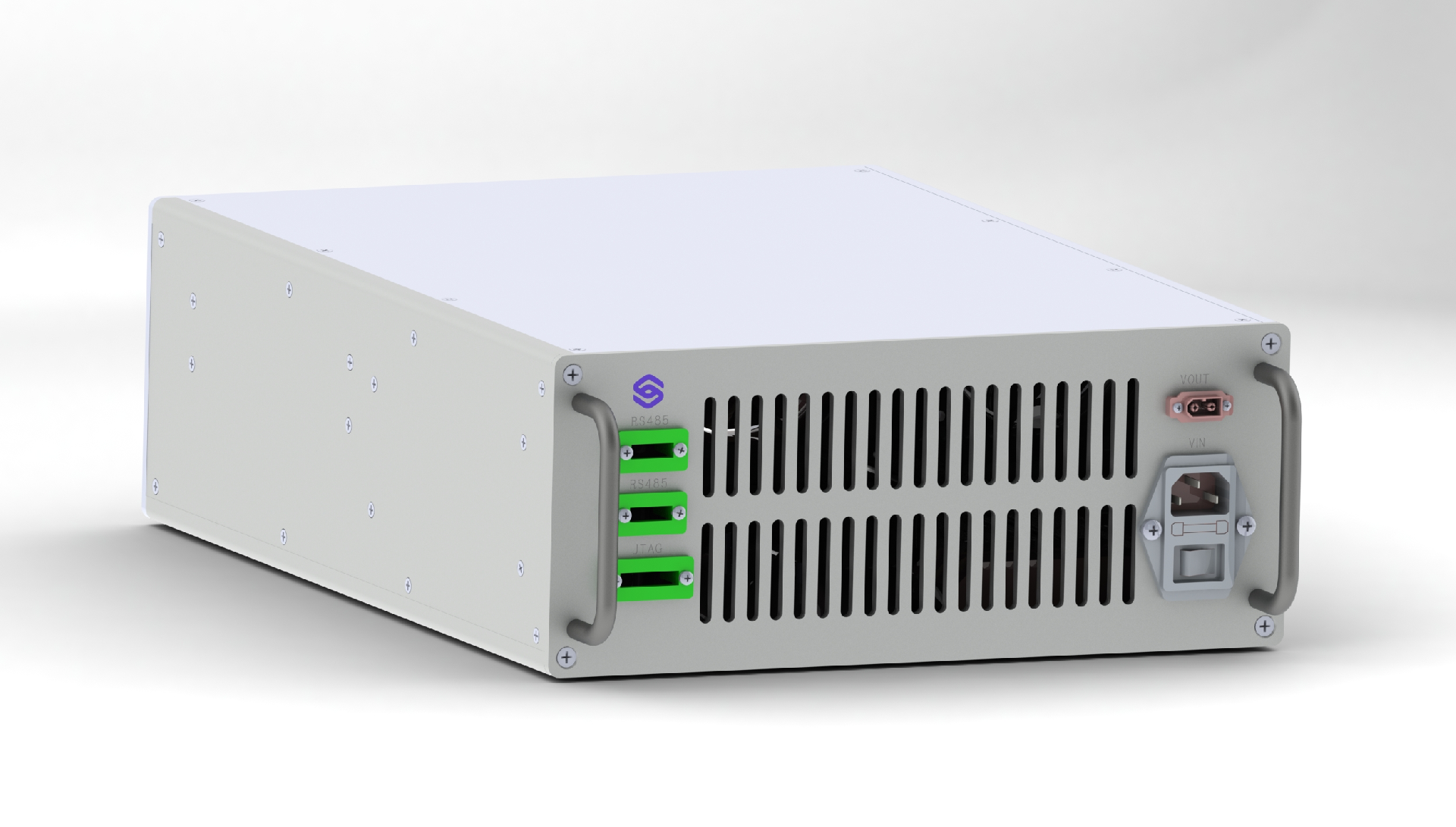

The 180V/6A constant voltage & constant current (CV/CC) charger module is a power supply device R&D-tailored for fusion devices, boasting core advantages such as high anti-magnetic interference, high voltage resistance, digital controllability, remote operation, and high safety & reliability. It enables remote adjustment of charging parameters and remote monitoring of operating status, accurately meeting the special working condition requirements for charging supercapacitor modules. In terms of structural design, control logic and system integration, the module can be perfectly embedded into the supercapacitor integrated unit.
Parameters | |
| Input Voltage | 220VAC±15% |
| Output Voltage | 180VDC max |
| Output Current | 6A max |
| Power | 1.08kW max |
| Efficiency | ≥90%(Full Load) |
| PF | ≥0.98(Full Load) |
| Voltage Accuracy | 1%FS(20%——100%Load) |
| Current Accuracy | 1%FS(20%——100%Load) |
Environment | |
| Operating Temperature | -25℃~60℃ |
| Storage Temperature | -25℃~70℃ |
| Humidity | ≤90%RH, No condensation |
Others | |
| Communication interface | RS485 |
| Cooling Method | Air Cooling |
| Insulation Withstand Voltage | 3000VDC |
| Protection | Overvoltage,Overcurrent,Short Ciruit,Overtemperature |
| Size | 408 mm ×313 mm ×128 mm |
This product is mainly applied to the charging system of supercapacitor modules in the pulse power supply of fusion devices. With its characteristics of high anti-magnetic interference, high voltage resistance, and high-precision constant voltage and constant current, it can also be used in scenarios such as laboratory and testing equipment, and electric vehicle charging.
