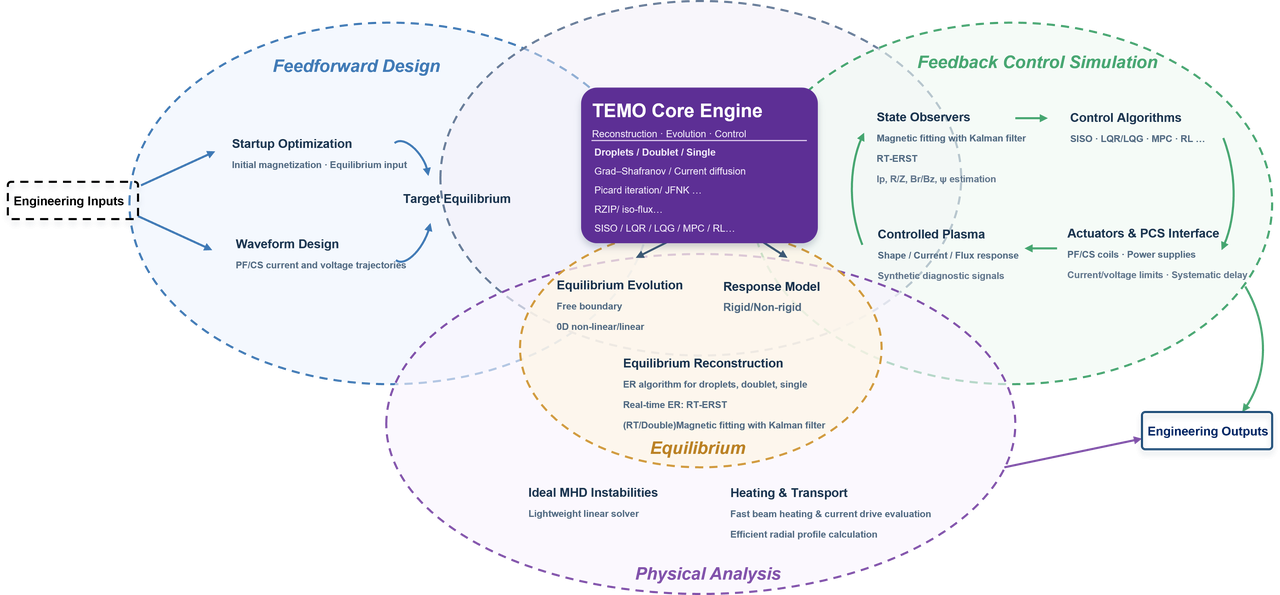

TEMO (Tokamak Equilibrium Modeling toolbox for Operation) is an operation-oriented tokamak equilibrium toolbox that covers the entire experimental workflow, from discharge design to analysis. It supports full closed-loop simulation of the evolution, observation, and control of both singlet/doublet configurations, providing strong support for discharge design, controller design, diagnostic data processing and physics experiment analysis during experimental operations.
Features
Supports three self-consistent and high-fidelity equilibrium computation methods, including equilibrium reconstruction, forward free-boundary calculations, and coil-current reconstruction.
Supports feedforward design and various feedback-control simulation functions. Based on the feedforward design, it produces a feasible discharge scenario. Feedback-control simulations are carried out based on plasma response model to investigate plasma-control strategies, providing a basic plan for control experiments.
| TEMO Specifications | |
| Static Equilibrium | Supports equilibrium reconstruction, forward free-boundary calculations, and coil-current reconstruction. |
| Discharge Scenario Design | Supports null field design and optimization ；Based on static equilibrium design, TEMO support discharge-scenario design. |
| Free-Boundary Equilibrium Evolution | Supports 0D linear and nonlinear free-boundary equilibrium evolution ；1D-related capabilities are under development. |
| Control Simulation | Supports closed-loop control simulations for singlet RZIP and isoflux configurations ；Supports closed-loop control simulations for doublet RZIP configurations ；Control algorithms include SISO, LQR/LQG, MPC, RL, etc. |
| Other Physics Analysis | Supports ideal magnetohydrodynamic (MHD) instability analysis ；Supports basic analysis of NBI heating and heat transport. |
| Device Design | Based on the overall TEMO framework, supports 0D tokamak device design. |

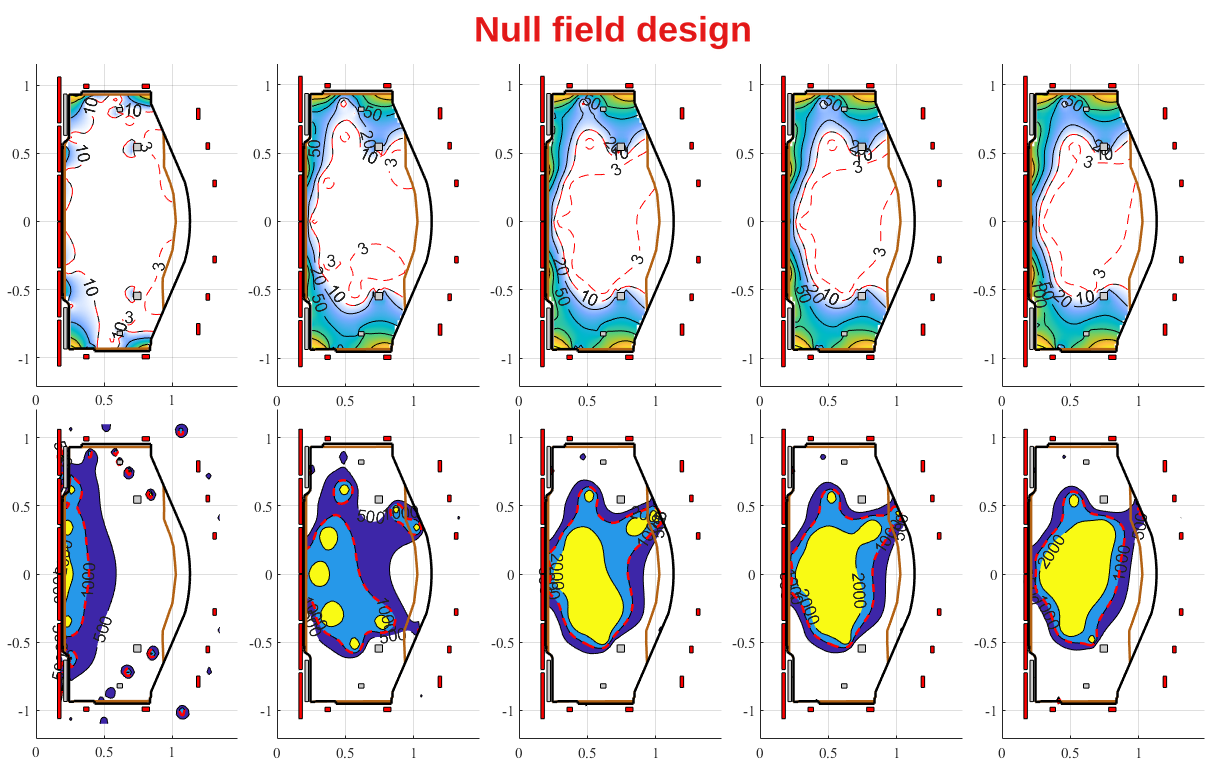

Null Field Design：Supports dynamic null field design, self-consistent eddy-current compensation, and generation of coil current waveforms required for plasma breakdown.

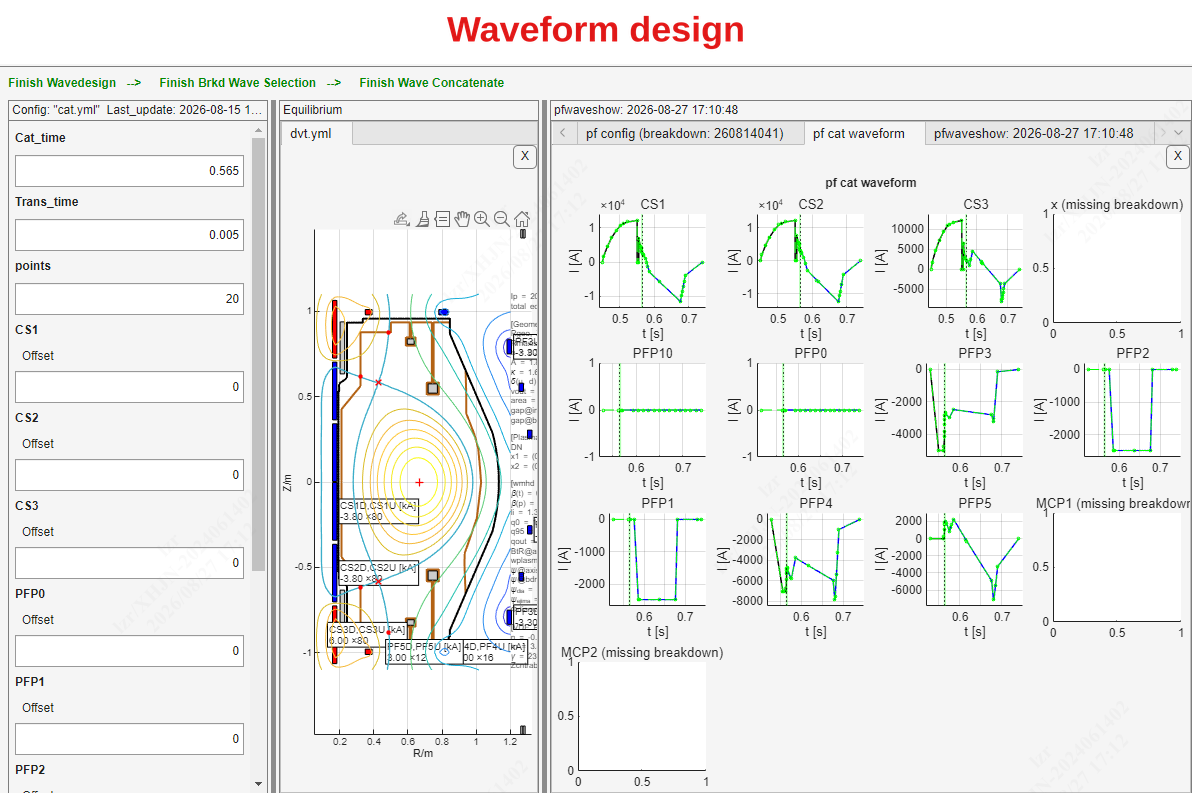

Discharge Waveform Design：Designs feedforward waveforms for the ramp-up and flat-top phases based on singlet/doublet equilibrium configurations, and concatenates them with the breakdown waveform to produce a complete discharge waveform.

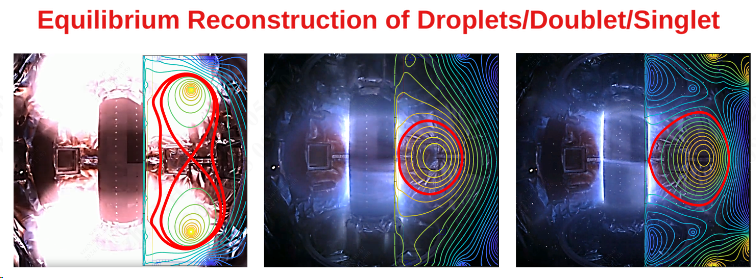

Equilibrium Reconstruction：Provides stable equilibrium reconstruction of complex singlet/doublet configurations, supplying equilibrium data for experimental analysis.

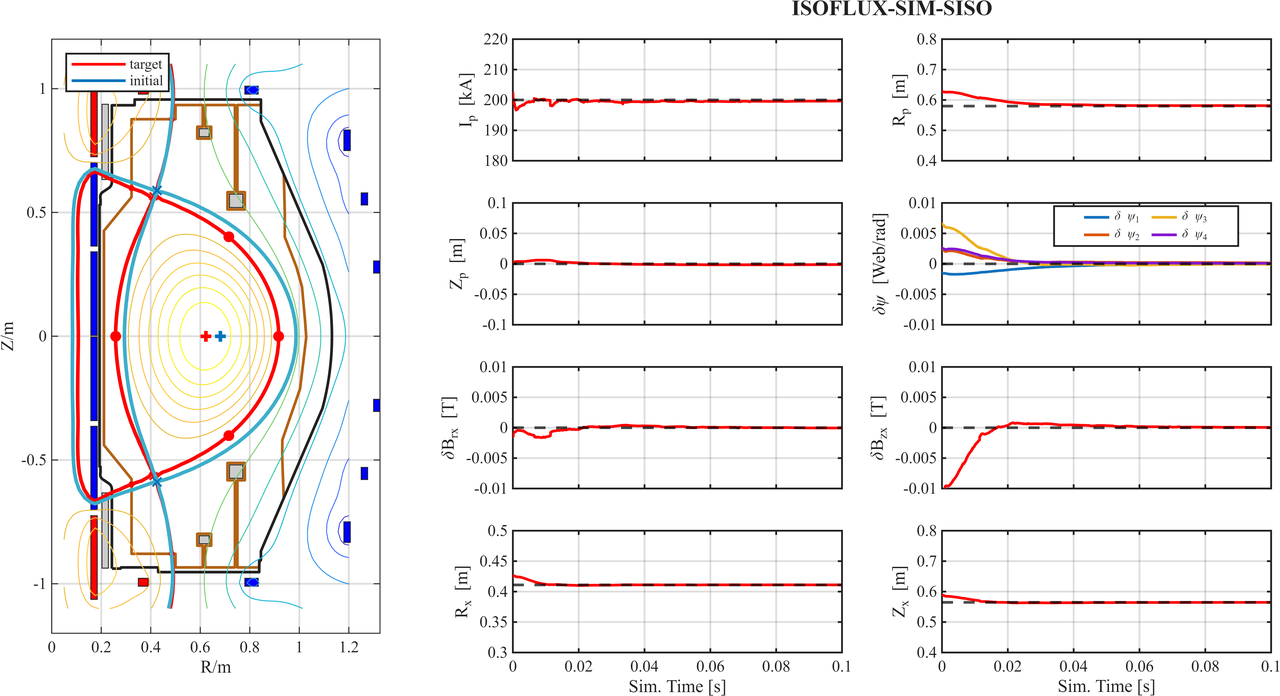

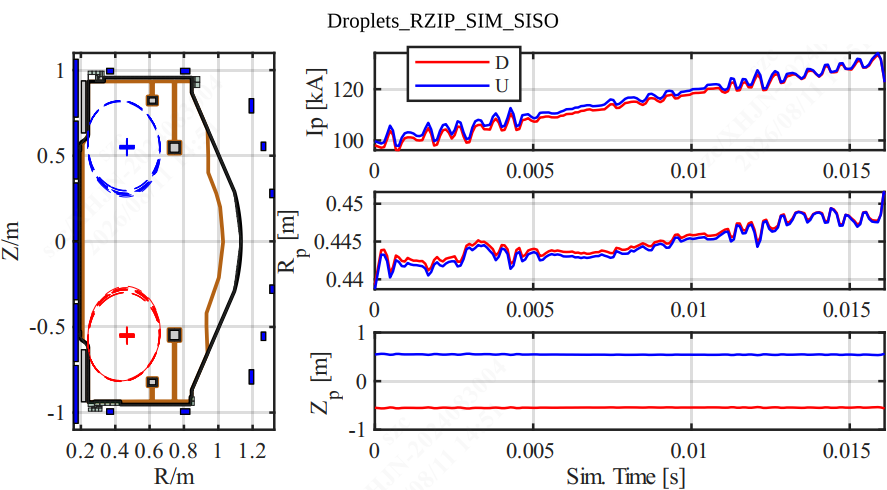

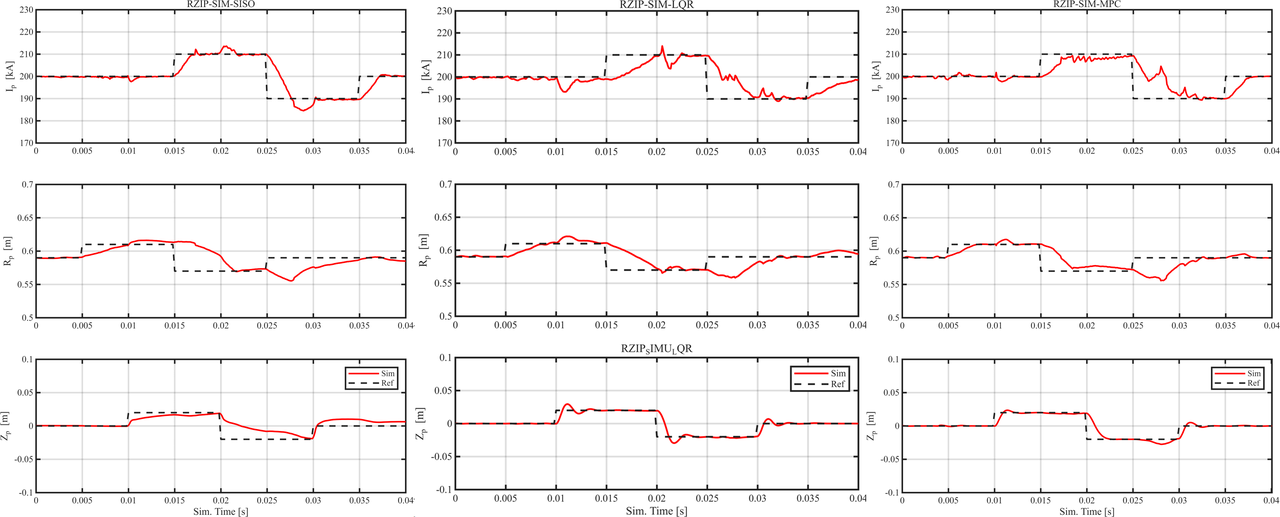

Control Simulation：Supports offline simulations of singlet SISO, LQR, LQG, and MPC control, as well as RL-controller training, together with RZIP_SISO control simulations for doublet configurations, providing solutions for plasma feedback control.
