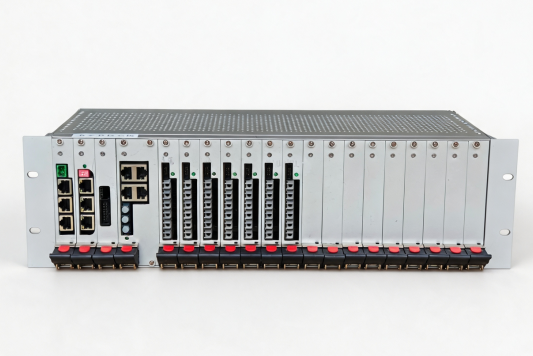

The Multi-Channel H-Bridge Controller is a high-reliability digital control core for the magnet power supply systems of nuclear fusion devices. It was originally designed for the Poloidal Field (PF) coil power supply of the SUNIST-2 device, where it controls the state of the PF power supply H-bridges in order to precisely regulate the discharge waveform. The design is portable and can also be applied to other high-power pulsed power supply control scenarios, including CS power supplies, MC power supplies, and plasma acceleration. The product uses a modular chassis-based design with an FPGA as its control core, and comprises six functional modules: the FPGA main control module, the communication module, the power supply module, the link module, the optical-port signal output module, and the signal acquisition module. All modules are interconnected through a backplane and are hot-swappable, which ensures reliable power delivery and signal transmission while keeping maintenance and upgrades convenient. In addition to controlling the output current waveform, the controller performs multi-point acquisition and real-time monitoring of voltage and current signals at various points in the power supply. The acquired signals are compared against preset thresholds to determine whether a fault exists at each monitoring point, thereby achieving fault localization and real-time protection, and safeguarding both the electrical supply and the equipment.

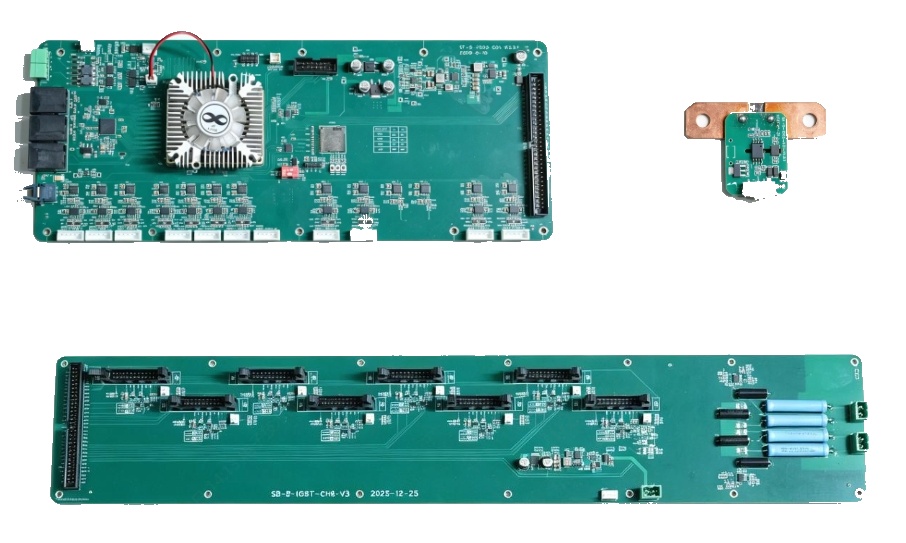

The Universal Power Module Power Controller is a highly integrated control core developed for multi-module series/parallel power supply systems. Featuring high integration, strong communication capability and multiple protection functions, it serves as the unified control core for the power supply product series. The controller is based on a PL/PS collaborative architecture and covers power supply monitoring, multi-channel current/voltage acquisition, IGBT drive and feedback, multi-channel communication (EtherCAT, RS485, Gigabit Ethernet), pulse triggering and protection chains. Together with power modules, supercapacitor packs and chargers, it forms a complete universal power supply system. The product is suitable for applications such as new energy, power electronics, energy storage and industrial high-voltage measurement and control.

The 8 kA/3.6 kV Solid-State Circuit Breaker (SSCB) is a high-performance power protection core device tailor-made for the excitation and quench protection of superconducting coils in fusion devices. Utilizing semiconductor devices and precise control technology, it is configured for high parameters of 3.6 kV rated voltage and 8 kA rated current, meeting the operational requirements of fusion device superconducting coils under extreme conditions such as ultra-low temperature, strong magnetic fields, and high energy storage. It ensures stable and continuous current conduction during excitation and achieves high-speed, reliable breaking within microseconds (≤10 μs) upon quench failure, providing safe, reliable, and ultra-fast electrical protection for fusion devices.

Plasma guns serve as pivotal components for pre-ionization, fueling, and physical control in fusion devices. Their power supply systems must withstand the challenges of drastic transient impedance fluctuations, transitioning rapidly from high-voltage breakdown to high-current conduction. To meet these rigorous requirements, Startorus Fusion has developed this specialized power supply. By integrating all-solid-state switching and optical-isolation triggering technologies, the system achieves nanosecond-level precision control and superior high-voltage isolation for enhanced noise immunity. The optimized low-inductance loop design effectively suppresses voltage spikes and current surges during the breakdown phase. Furthermore, the dual-capacitor redundant architecture and multi-layered protection mechanisms ensure stable and reliable operation throughout the hydrogen discharge process. While maintaining system safety and signal integrity, the power supply delivers stable high-power pulse energy with precise waveform modulation, providing critical mission-power support for fusion experiments.

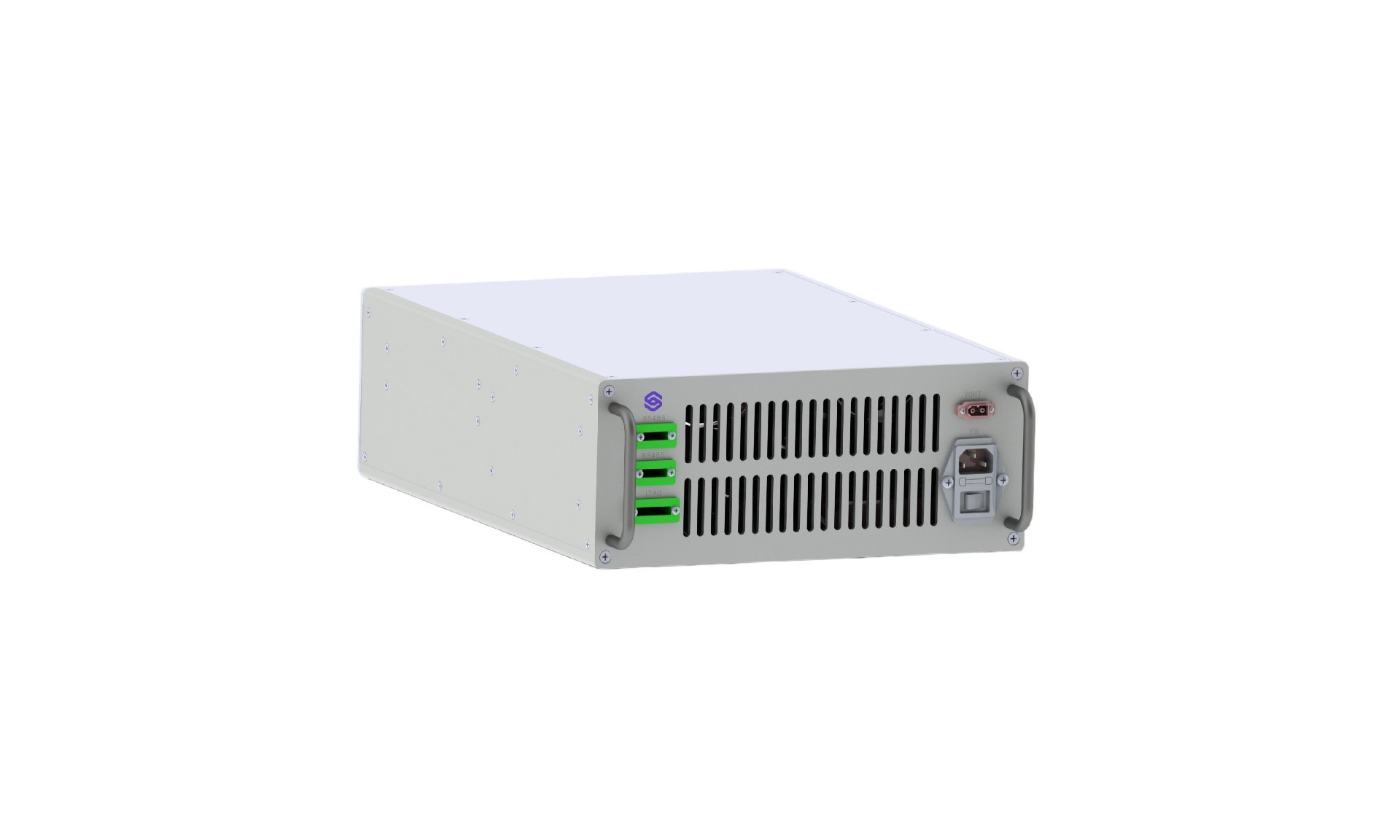

The 180V/6A constant voltage & constant current (CV/CC) charger module is a power supply device R&D-tailored for fusion devices, boasting core advantages such as high anti-magnetic interference, high voltage resistance, digital controllability, remote operation, and high safety & reliability. It enables remote adjustment of charging parameters and remote monitoring of operating status, accurately meeting the special working condition requirements for charging supercapacitor modules. In terms of structural design, control logic and system integration, the module can be perfectly embedded into the supercapacitor integrated unit.

The Supercapacitor Integrated Unit is engineered as a high-performance core component for advanced magnet power supply systems, seamlessly integrating energy storage, rapid charging, and controlled discharging functions into a single compact platform. It delivers exceptional power density, extended operational lifespan, and proven reliability under demanding conditions. The unit features an integrated architecture that combines supercapacitor modules, dedicated charging power supplies, precision discharging components, and a comprehensive monitoring system. Equipped with a built-in display and RS485 communication interface, it offers distinct advantages such as high integration, elimination of external management devices, true plug-and-play operation, and simplified maintenance. Ideal for a wide range of high-power applications, this product is particularly suited for use in new energy systems, grid-scale power storage, pulsed power systems, and related advanced technical fields.

This advanced pulsed power supply serves as a core driver for PF and CS magnets in tokamak fusion devices. Designed with a fully modular architecture, it integrates three key subsystems: a high-density Energy Storage Unit, a high-efficiency Power Conversion Unit, and an intelligent Digital Control Unit. - Through adjustable power switch topologies and hybrid energy storage—combining aluminum electrolytic capacitors with supercapacitor modules—the system can be rapidly reconfigured between PF pulse magnet drive power supplies and CS pulse magnet drive power supplies, offering exceptional operational adaptability. - Delivers output currents up to ±10 kA (PF) and ±20 kA (CS), with a current rise rate of 1 kA/ms. The current fall rate is configurable via external series resistors, extending up to 2 kA/ms for CS operation. - Supports both voltage-controlled and current-controlled discharge regimes. Operators can select either mode prior to operation or switch between them in real time during discharge for unmatched waveform flexibility. - Equipped with multi-protocol communication interfaces (RS485, Ethernet, EtherCAT), the system enables seamless remote monitoring, control, and automation via integrated power supply control software. - Its modular construction allows for tailored adjustments to output voltage, current, pulse waveform, and timing parameters, ensuring optimal performance for specific experimental or operational requirements.

This product utilizes a supercapacitor module for energy storage, integrating a power conversion unit, a storage unit, and a controller. It boasts significant advantages such as compact size and high power density. The product supports both offline LCD screen control and online remote control modes. Online communication is compatible with multiple industrial communication protocols, including RS485, Ethernet, and EtherCAT. Additionally, the product can serve as a basic unit for flexible series and parallel expansion. The output voltage can reach up to ±3kV, with no restrictions on the output current. With its modular architecture, the system can be easily expanded based on actual application requirements, ensuring efficient operation and maintenance.
