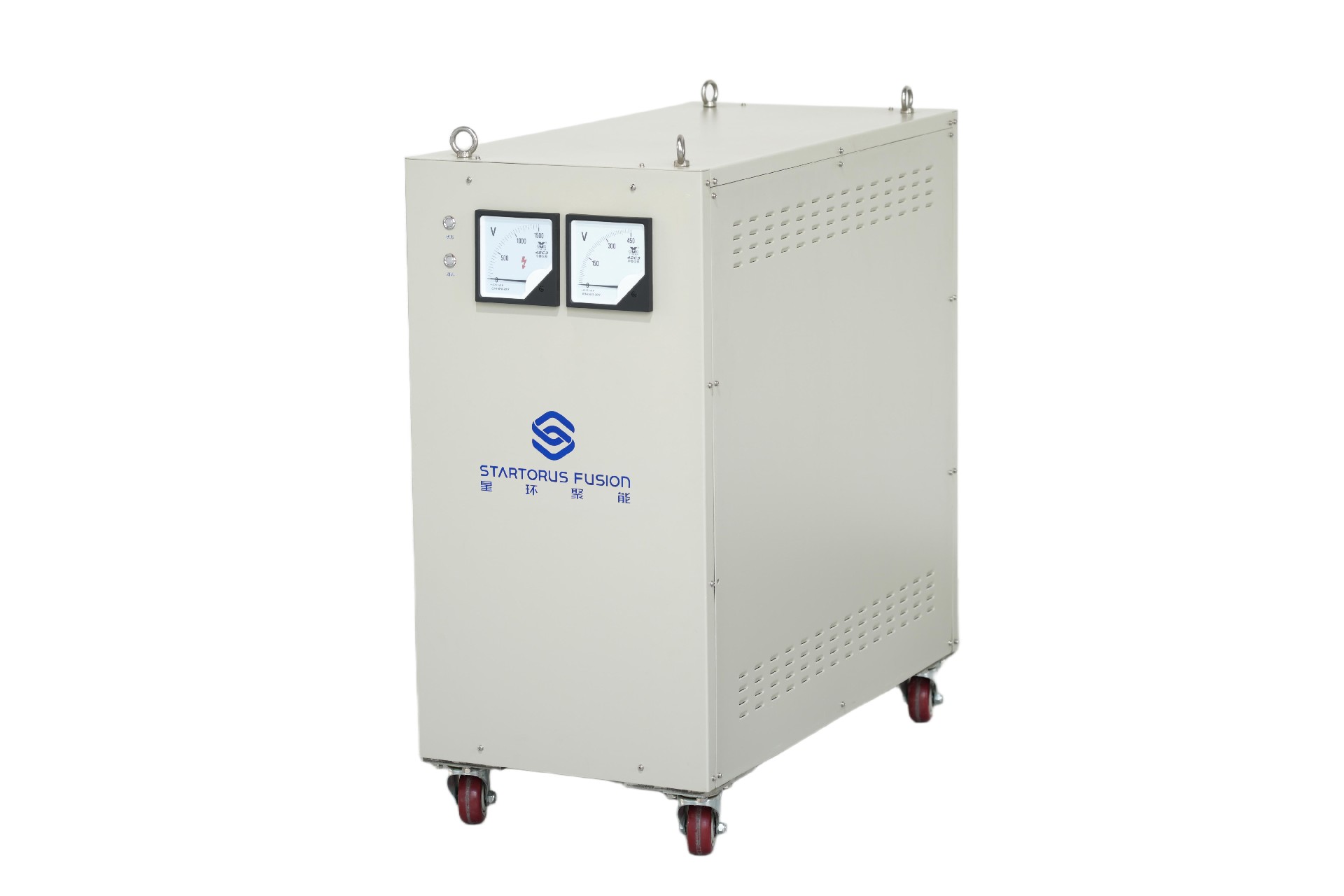

Plasma Gun Breakdown Power Supply (BSD)

Plasma guns serve as pivotal components for pre-ionization, fueling, and physical control in fusion devices. Their power supply systems must withstand the challenges of drastic transient impedance fluctuations, transitioning rapidly from high-voltage breakdown to high-current conduction. To meet these rigorous requirements, Startorus Fusion has developed this specialized power supply. By integrating all-solid-state switching and optical-isolation triggering technologies, the system achieves nanosecond-level precision control and superior high-voltage isolation for enhanced noise immunity. The optimized low-inductance loop design effectively suppresses voltage spikes and current surges during the breakdown phase. Furthermore, the dual-capacitor redundant architecture and multi-layered protection mechanisms ensure stable and reliable operation throughout the hydrogen discharge process. While maintaining system safety and signal integrity, the power supply delivers stable high-power pulse energy with precise waveform modulation, providing critical mission-power support for fusion experiments.

ITEMSpecification
Input
Input Voltage220VAC±15%
Power1500 W max
Energy Storage7.88 Wh
OutputOutput Voltage0~1400 V
Output Current0~2000 A
Output Pulse Duration0~20 ms
ControlData Communication InterfaceEtherent
Power Control InterfaceOptical Trigger Input
Operating ModeOpen-loop control
SafetyIsolation Voltage Withstand≥3000VDC
MechanicalDimensions(LWH)970 mm*725 mm*910 mm
EnviromentalOperating Temperature0~45 ℃
Humidity≤95%,No condensation
Altitude0~2000 m

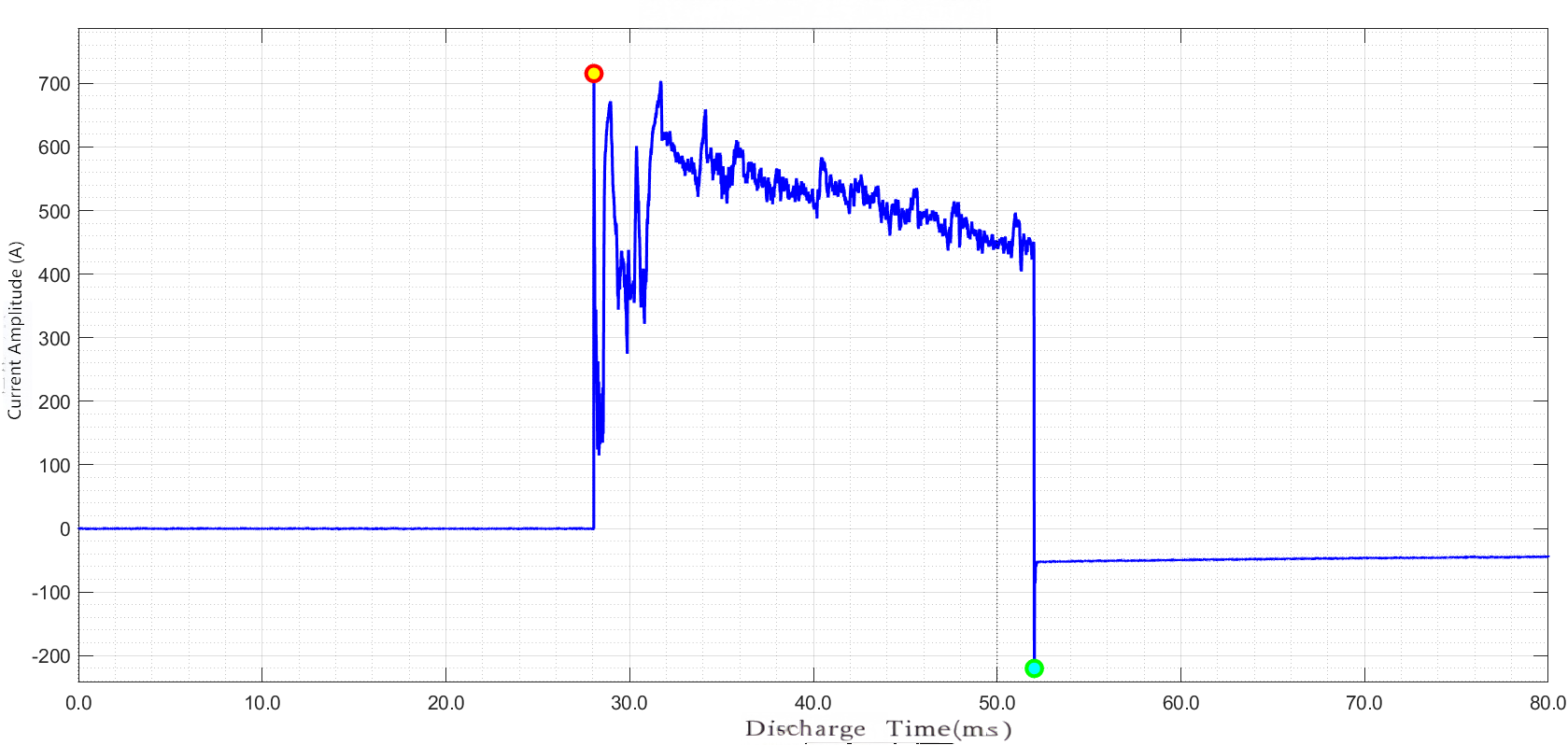

Discharge Current Waveform Example



Specifically engineered for efficient and reliable plasma ignition, this product delivers nanosecond-rise-time high-voltage pulses to ensure rapid and dependable dielectric breakdown in gaseous media. Following breakdown, the system autonomously transitions to constant-current or constant-power operational modes, supplying continuous, stable energy to sustain the plasma arc. It features exceptional load disturbance immunity and incorporates comprehensive protection mechanisms, making it the optimal power component for material processing, plasma spraying, and scientific research applications.
